Company Profile
Hohhot Liaoyuan Technology Co., Ltd. is located in Hohhot, the capital of the Inner Mongolia Autonomous Region. It inherits 30 years of manufacturing philosophy and industry accumulation from Inner Mongolia University of Technology, focusing on the research and development (R&D) and manufacturing of smart card production equipment. Based on the foundation of traditional craftsmanship, the company started with the independent R&D of smart card equipment and has continuously made breakthroughs and innovations. A variety of independently developed equipment have won multiple national patents, enabling the company to provide professional solutions for the production of various cards such as contactless IC cards, bank cards and ID cards. Its product range covers complete sets of equipment including fully automatic laminating machines, fully automatic card punching machines, automatic hot lamination machines, flat-bed integrated card punching machines and automatic pre-positioning machines.
With the solid support of patented technology, the company continuously promotes the upgrading and iteration of equipment, helping customers’ production lines improve actual production capacity with better performance and creating higher production value for users.
In terms of service coverage, the company has an extensive and in-depth business layout: in the domestic market, it not only provides strong support for card manufacturers and RFID production manufacturers, but also serves the ID card production field of government projects. In particular, it can meet the production needs of high-confidentiality ID cards, legal documents and other products, and has the professional capability to cope with high-safety standard scenarios; in the international market, relying on 30 years of industry experience, the equipment has been exported to more than 20 countries and regions around the world, widely used in the production of local ID cards, various documents, identity cards and passports. With stable and reliable performance, it supports the core document manufacturing needs of overseas customers and has become an important equipment supplier connecting the global document production field.
Liaoyuan Technology has always adhered to the tenet of “Card Making Equipment, Made in Inner Mongolia, Quality First, Service Foremost”, and sincerely looks forward to working hand in hand with all sectors of society to build a mutually beneficial and win-win cooperative relationship.
Main Business
Complete sets of equipment such as automatic card punching machines, automatic laminating machines, automatic hot stamping machines, flat-bed card punching machines and automatic pre-positioning machines.
Main Products

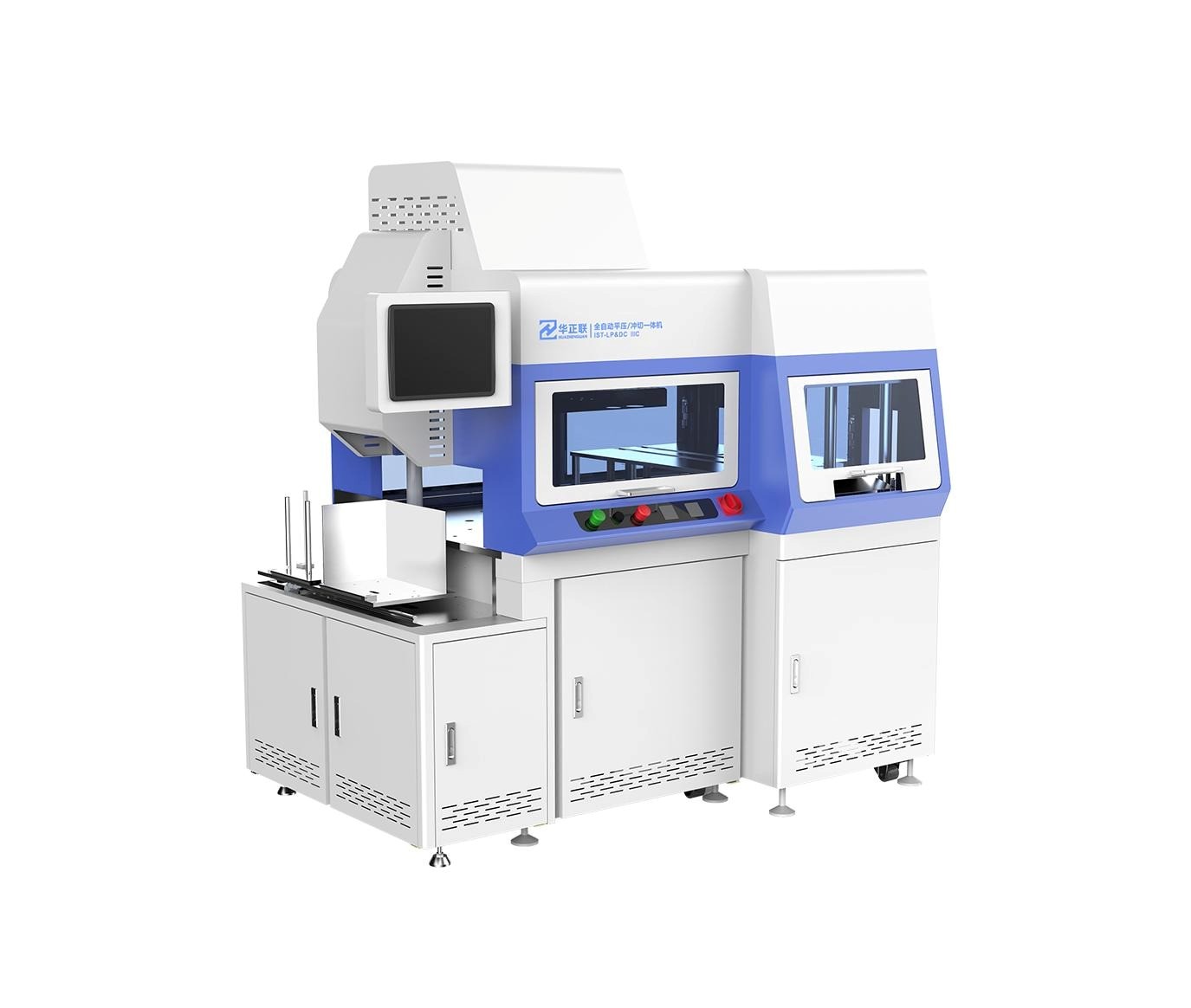

ID CARD MANUFACTURING MACHINE
Description：
This machine is used for the laminating of printing layer and inlay and then punches into the final cards.This machine combined the laminating with the punching, which leads to the automatic feeding,laminating, punching and selecting.

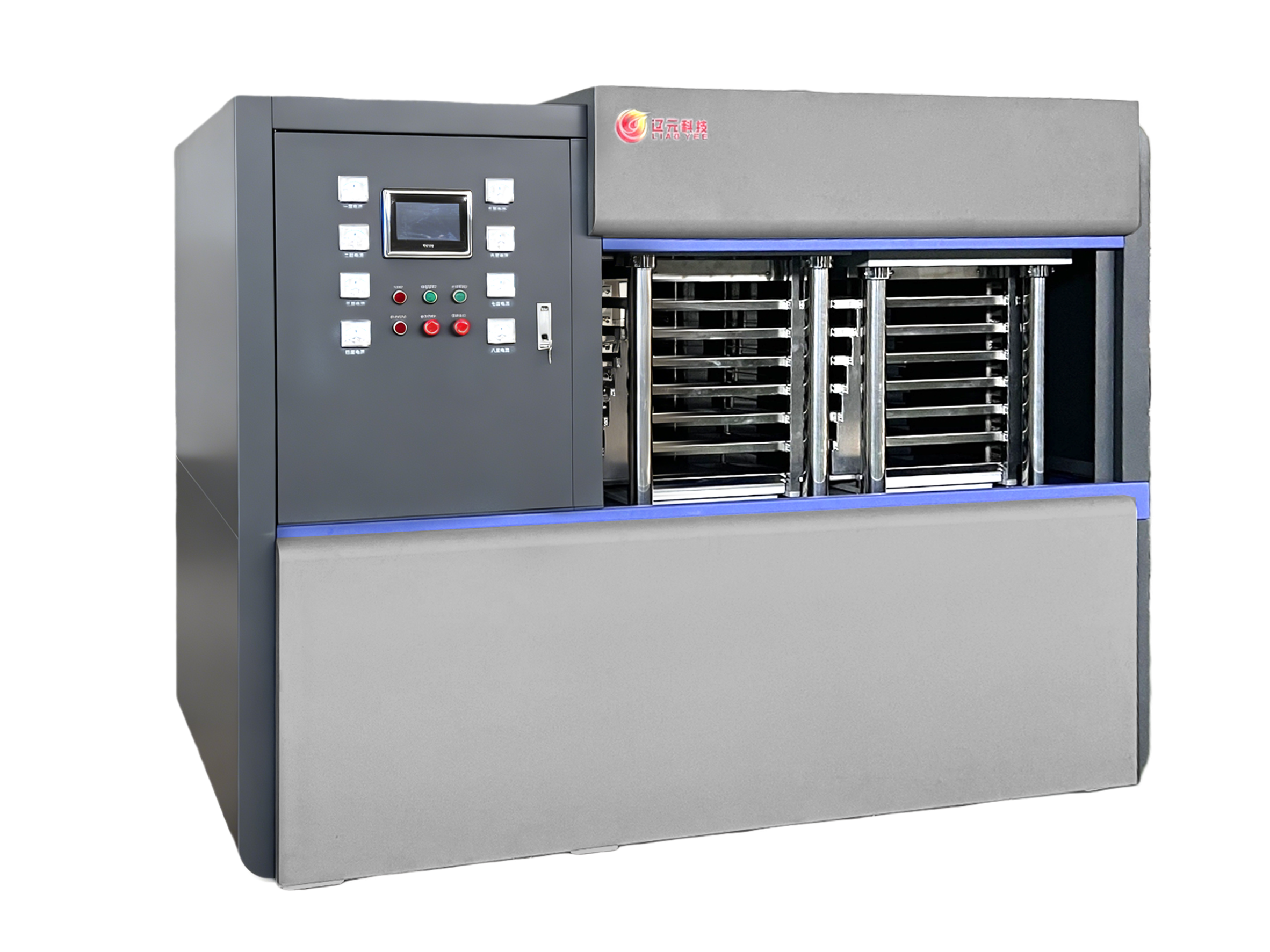

CY42-52AL LAMINATION MACHINE
Description：
This is the laminator for smart cards making, It has two sets of light alloy aluminum lamination boards, the frequency conversion of the hydraulic pump for pressuring and four cylinder for variable pressure.
The lamination is segmented and controlled by PLC;the temperature control module and the high accuracy pressure transmitter combined lead to the high grade pressure, the uniform temperature distribution, the rapid thermal and the short lamination time.This is an efficient,energy-saving and environmental machine.
- Optional gravity reduction device.
- Optional material loader.

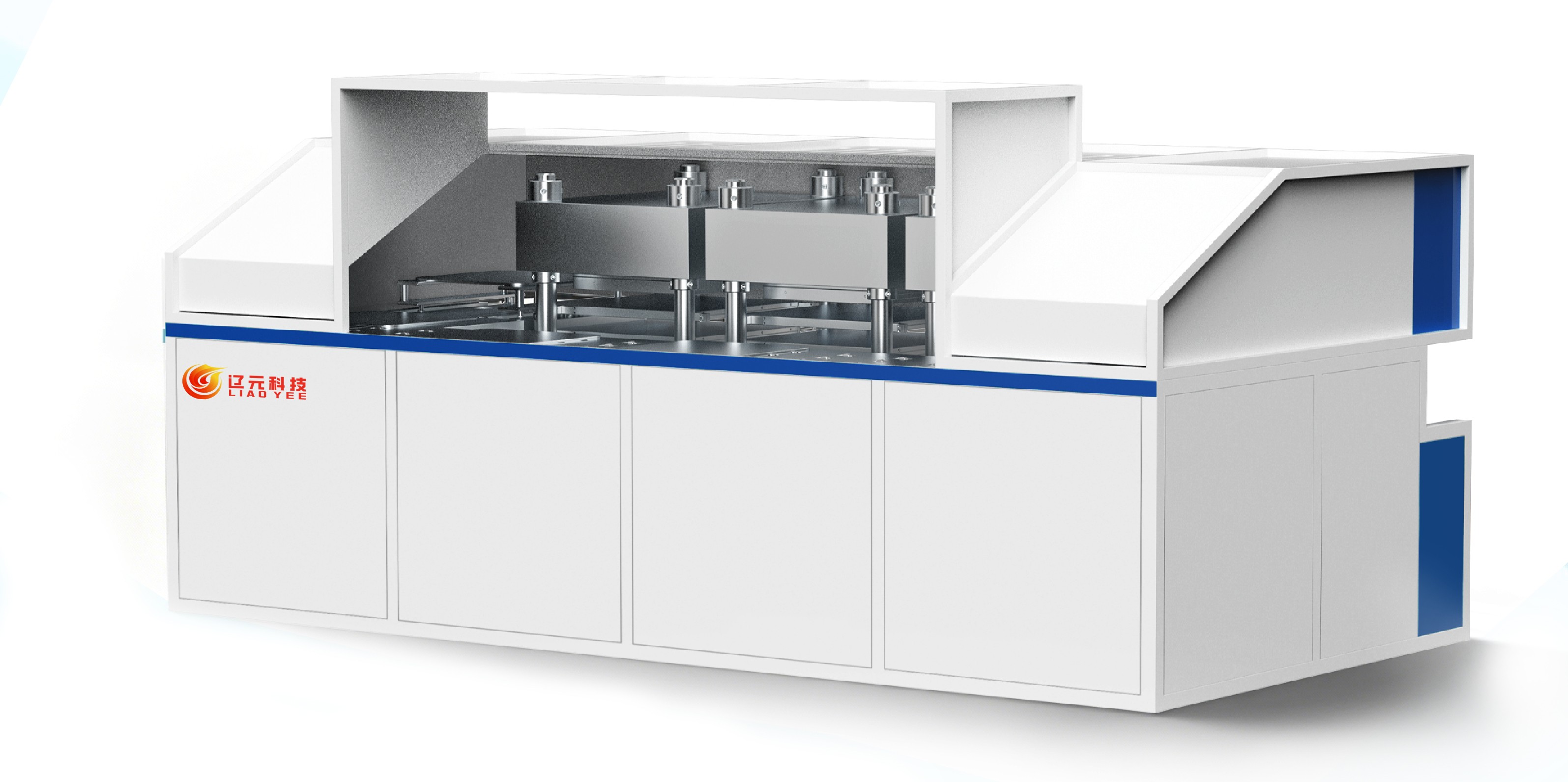

PC Material Laminating Machine
Description：
Designed for laminating pre-laminated sheets, inlays and similar products, such as plastic cards, smart cards and contactless cards. The system meets the latest current requirements in terms of cost efficiency, environmental friendliness, as well as product and process quality. All key process parameters, including temperature, pressure and cycle time, can be controlled independently. The system is capable of laminating all current mainstream card materials such as ABS, PVC, PC, PET and PETG under selectable process conditions.

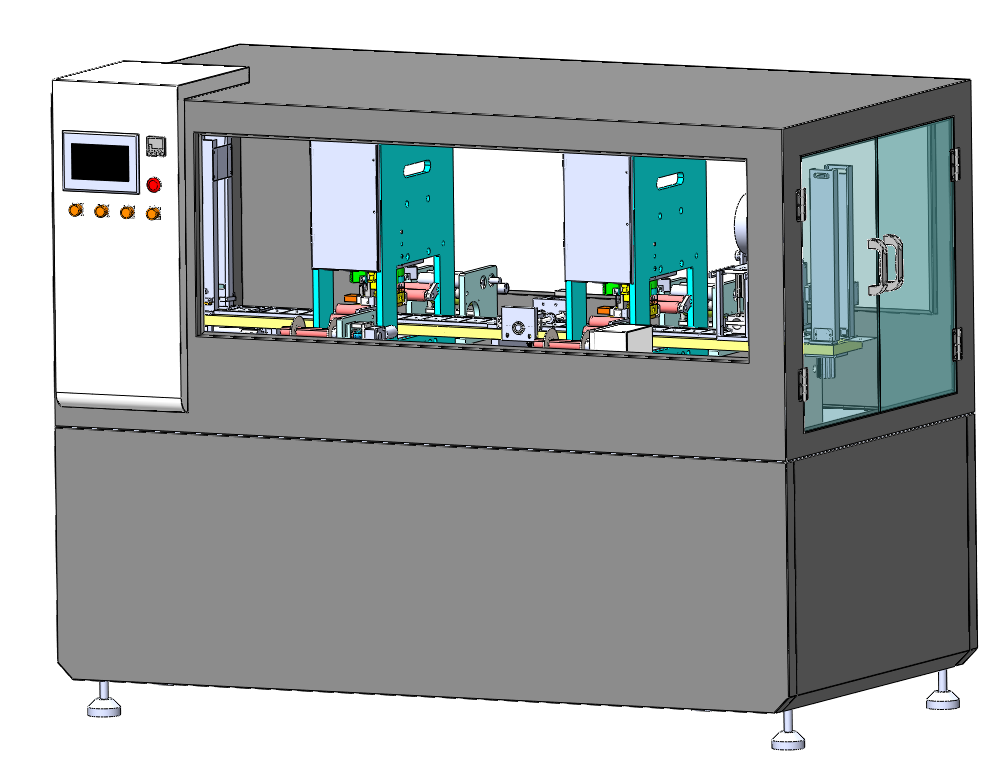

HT-12E DOUBLE HEAD HOT STAMPING MACHINE
Description：
The hot stamping power is supplied by a servo motor, which drives the stamping head downward through a force-amplifying mechanism.The stamping head can be adjusted to the central position of the spindle, and the card stamping position is adjustable. The X- and Y-axis movement of the stamping head is adjusted by the stamping mechanism with a simple operation, achieving an adjustment accuracy of ±0.1mm. The positioning deviation of the card at the stamping position is within ±0.1mm.
Patented leveling mechanism for the stamping head.
The contact time and pressure between the stamping head and the card are adjustable during stamping. No missing spots occur after stamping, and the adhesion strength meets the product adhesion quality requirements.
The step length of the film conveyor belt is adjustable, ensuring stable and accurate stamping pitch with a set step error of ±0.15mm.
Equipped with an electric flipping mechanism: it first translates the card to be flipped to separate it from the preceding and following cards, then performs flipping, ensuring no collision or contact between the flipped card and the cards on the front and rear tracks. After flipping, the card is pushed under the second stamping head by the second card-pushing mechanism for stamping.
The format for flat stamping is 86mm × 48mm, within which the position and size can be freely adjusted to meet production requirements.The applicable card thickness ranges from 0.65mm to 1mm.After stamping, the surface is overall flat with no visible significant height difference between the edges and center of the stamping pattern, and the overall flatness error is ±0.05mm.The maximum width of the stamping film belt is within 95mm and is adjustable.
The stamping temperature is constant and controllable, ranging from room temperature to 200℃ with temperature setting function.
Machine stops and alarms when the card supply hopper is insufficient.
Machine stops and alarms when the card receiving hopper is full.
Machine stops and alarms in case of card pushing or feeding failure during operation. Machine stops and alarms when the stamping film belt runs out.
