Preface
With the acceleration of the global digital transformation wave, IoT technology is becoming a key force in promoting changes in all walks of life. With their advantages in technology research and development, cost control and industrial chain improvement, Chinese IoT companies have turned their attention to overseas markets to seek broader development space.
IOTE and IOSWC have joined hands to provide domestic companies with opportunities to conduct in-depth exchanges and cooperation with global software vendors to achieve resource sharing and market expansion!
IOTSWC Exhibition
SHENZHEN SILION TECHNOLOGY CO., LTD.
Booth No.: B46-5
Fira Gran Via, Barcelona, Spain
May 13-15, 2025
Meet you at the Barcelona Global Event
Company Profile
SILION TECH is a professional RFID technology service provider in the field of the Internet of Things. The core team has more than 19 years of industry experience in RFID and the Internet of Things. Since the establishment of the company team in 2005, SILION TECH has been providing global leading RFID products and comprehensive solutions to customers in various fields and directions such as logistics supply chain management, asset management, production and manufacturing management, anti-counterfeiting tracing management, personnel management, vehicle management, and embedded application products.
SILION TECH is also a global leader in RFID chips as a global gold partner of Impinj Inc., the company has worked closely with Impinj Inc. to provide ultra-high frequency RFID products based on Impinj Inc.'s RF chips to customers around the world.
Product Introduction
Micro RAIN RFID MODULE, SIM3800
• Size: 16.3 x 16.3 x 2.5
• RF Chip: IMPINJ E310
• One Antenna port
• 5-27 dBm RF power output
• Sensitivity: -73 dBm
• ≥300 tags/s
• ≥3m with 2.5dBi antenna
• Surface Mounted Devices (SMD) form factor allows for rapid and seamless integration
• Micro size and low power consumption

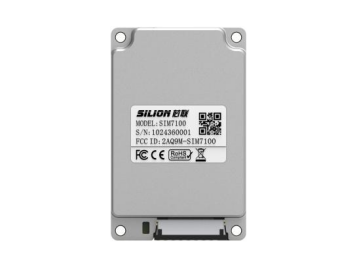

One-Port RAIN RFID MODULE, SIM7100
• Size (mm): 55.9 x 35.6 x 6
• RF Chip: IMPINJ E710
• One Antenna port
• 5-33 dBm RF power output
• Sensitivity: -87 dBm
• 12 pin connector UART, Including: Power supply, Communication and GPIO
• ≥1000 tags/s
• ≥5m with 2.5dBi antenna

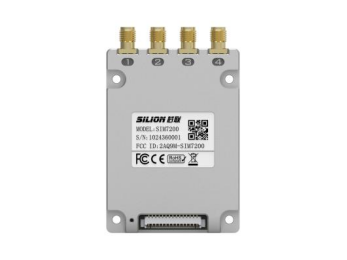

Four-Port RAIN RFID Module, SIM7200
• Size (mm): 74.8 x 48.5 x 8
• RF Chip: IMPINJ E710
• 4 Antenna port
• 5-33 dBm RF power output
• Sensitivity: -85 dBm
• 15 pin connector UART, Including: Power supply, Communication and GPIO
• ≥1000 tags/s
• ≥13m with 8dBi antenna
Application Areas
These diverse types of UHF RFID modules are widely applied across numerous industries, each bringing distinct advantages.
Retail, in the retail sector, they speed up inventory management and reduce theft.
Warehouses and Logistics, in warehouses and logistics, real - time tracking of shipments and pallets becomes possible, which significantly enhances operational efficiency.
Healthcare, healthcare facilities utilize them to monitor medical equipment and patient flow, ensuring better healthcare services.
Manufacturing, plants rely on these modules for tool and asset tracking, streamlining production processes. Parking and Toll Collection Systems, UHF RFID is adopted for automated vehicle identification, facilitating smooth traffic management.
